THIS PRODUCT IS INTENDED TO BE PURCHASED ONLY WITH A COMPLETE 350Z / G35 LS SWAP KIT. THIS IS ONLY THE UPGRADE COMPONENTS FOR THE STANDARD ACCESSORY DRIVE!

If you own a brand new uninstalled LOJ 350Z/G35 Accessory Drive, Send us an email after purchase. We will provide a list of components to ship back to us for a core charge return. This option DOES NOT apply to previously installed or used accessory drive components.

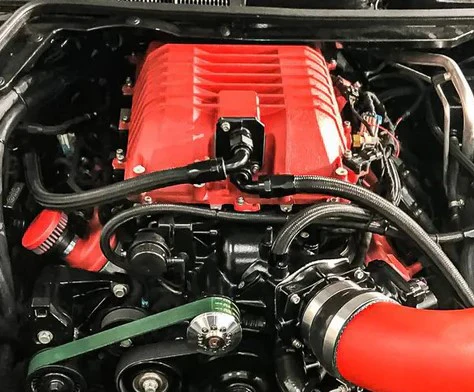

LSA Compatible Accessory Drive - This option changes the pulley arrangement to accommodate a positive displacement supercharger setup whose belt is driven off of the same belt alignment of a Corvette. Essentially, the same belt that drives the Alternator and Power Steering Pump will drive the blower. If you are using an LSA blower, you will need to have the snout modified for this belt offset. If you need to find a shop to do this work, just call LOJ Conversions and we can provide you a reference. This system has been successfully tested with both modified stock LSA blowers as well as Magnuson Hearbeat Supercharger Systems. The components that make this different from the standard accessory drive are listed below:

Complete 8-Rib System Upgrade (two additional ribs are added to the front of the 6-rib corvette spacing)
USED OEM Power Steering Pump with a custom 8-Rib 5% Underdrive pulley pre-installed. Underdrive will slow the PS Pump when using larger than stock crank pulleys to overdrive blower.
5% Underdrive 8-Rib Alternator Pulley
Reinforced and Redesigned Idler Pulley Bracket to cope with additional belt tension and for proper blower belt routing.
Reinforced PS Pump Tensioner Arm.

Required Parts:

If running an LSA blower, the snout MUST be modified for Corvette offset belt drive. Olson Kustom Works provides this service, click here.
If running a Magnuson Heartbeat Supercharger, the supercharger must be set up for Corvette offset. Heartbeat superchargers come standard with 6-rib pulleys, but 8-rib pulleys are also available.
In order to run the 8-Rib setup, the crank pulley MUST be swapped to an 8-rib pulley. These are available in stock diameter, 5%, and 10% overdrive for additional boost.

Accessory Drives

OEM GM Harmonic Balancer Bolt

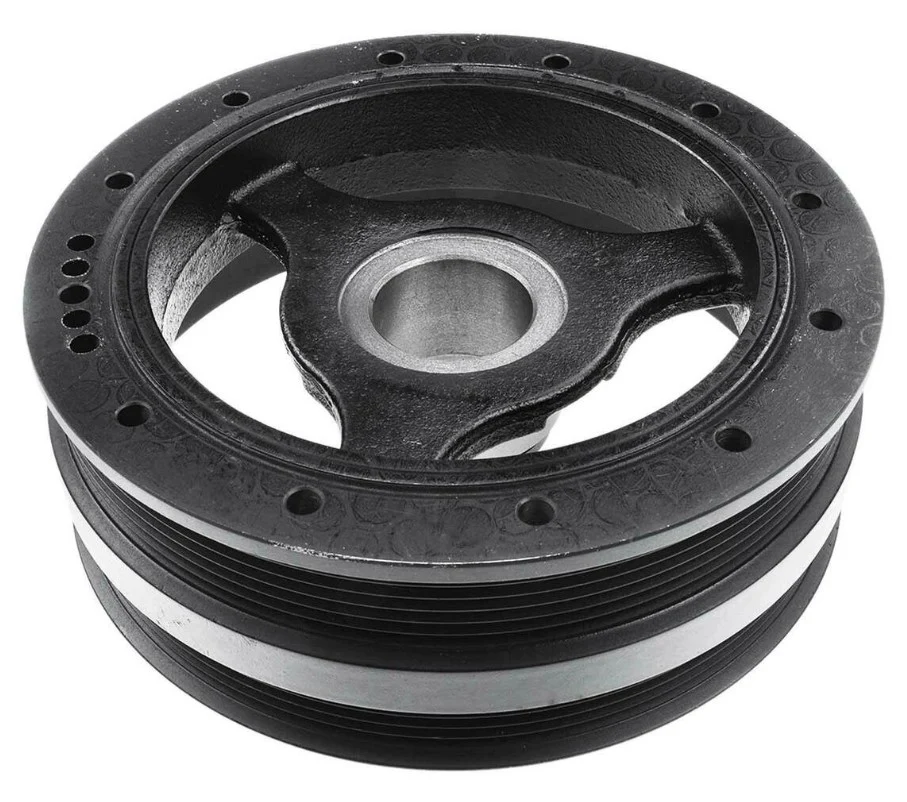

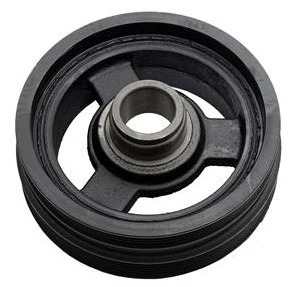

Chevy Corvette Harmonic Balancer

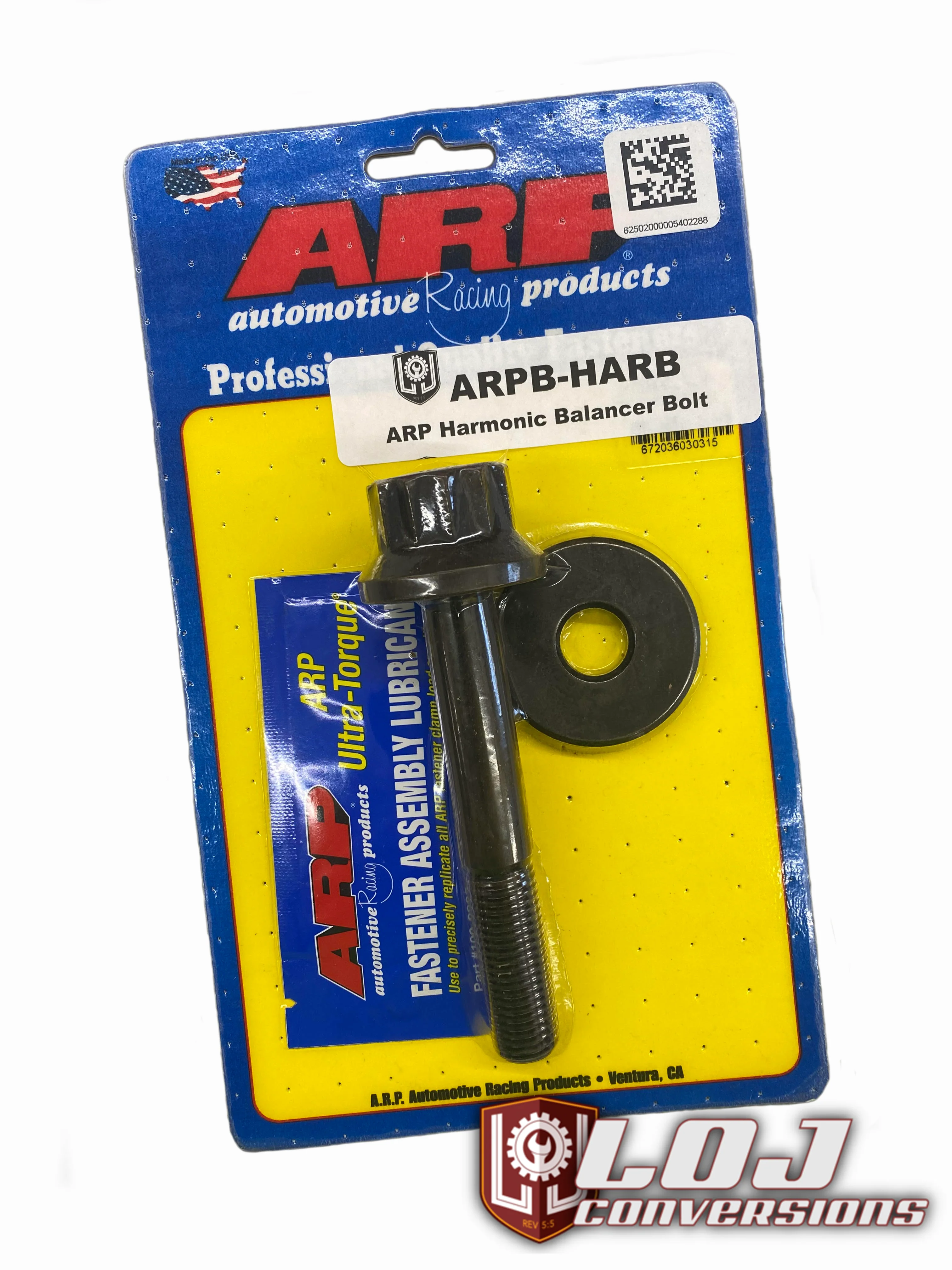

ARP Harmonic Balancer Bolt

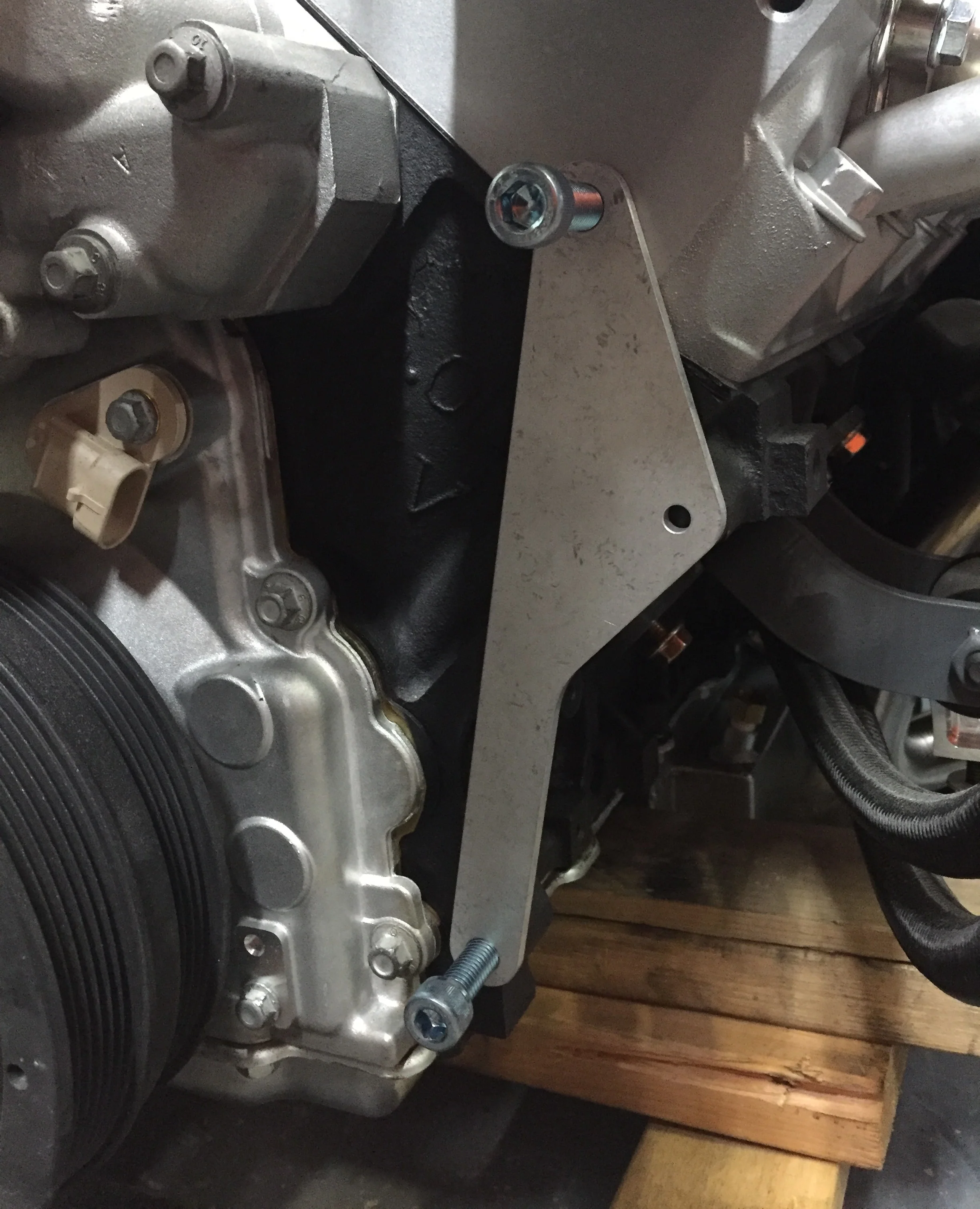

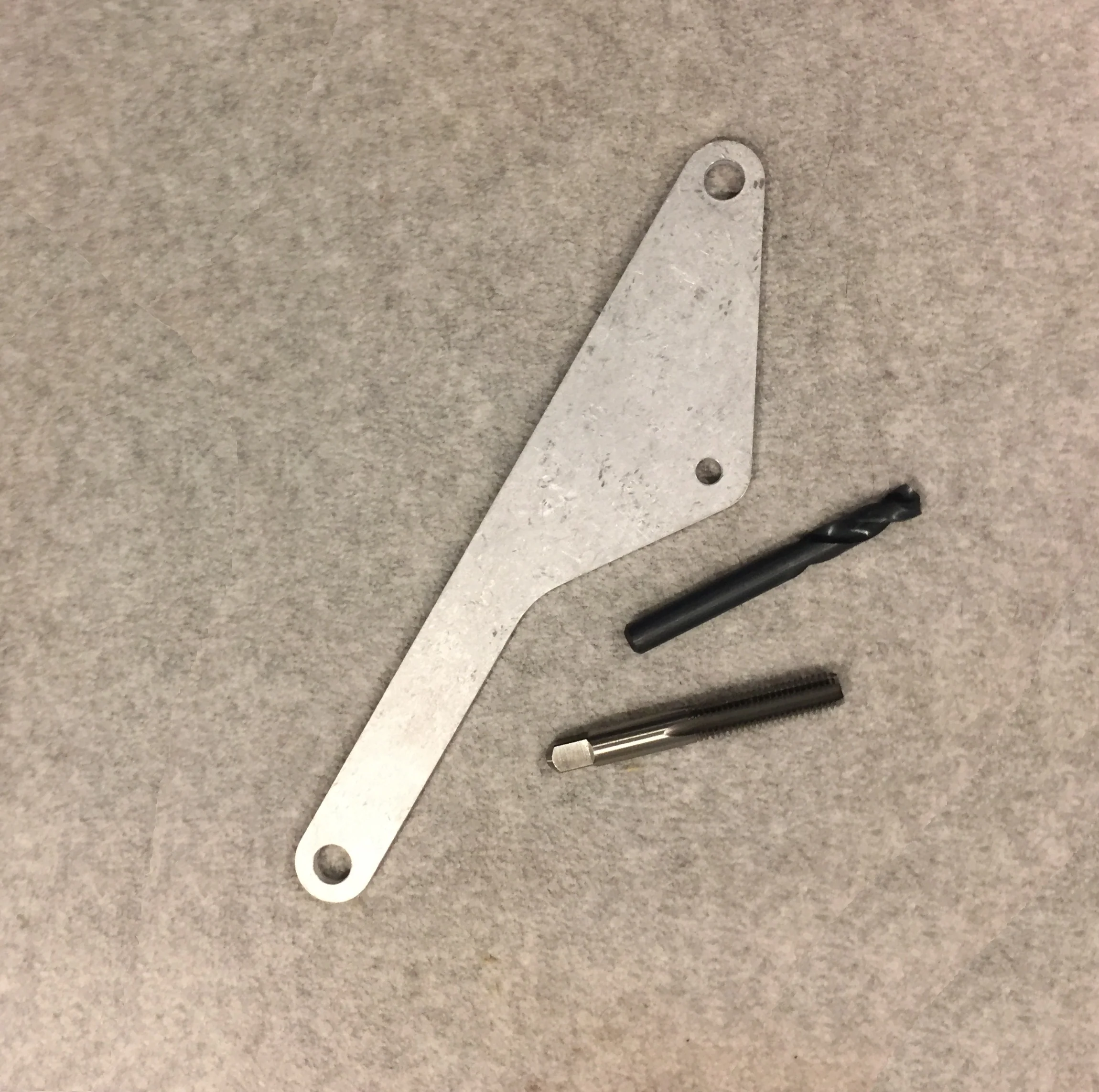

LSx Iron Block Drill Template Kit

350Z / G35 LSx Swap Accessory Drive - LSA Upgrade ONLY

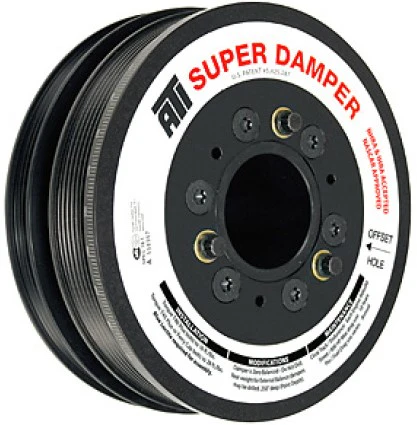

ATI Super Damper Corvette Crank Pulley - Stock Diameter w/ A/C
